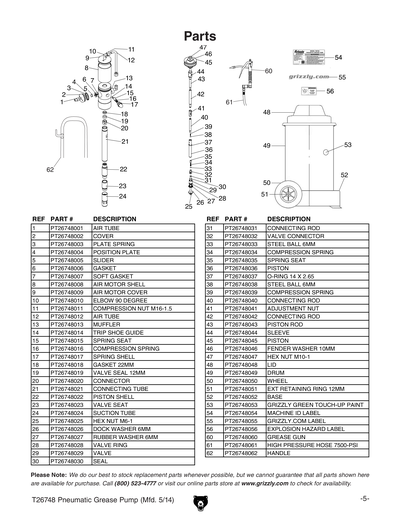

Parts for T26748 Air-Operated Grease Pump

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
AIR TUBE
2
COVER
3
PLATE SPRING
4
POSITION PLATE
5
SLIDER
6
GASKET
7
SOFT GASKET
8
AIR MOTOR SHELL
9
AIR MOTOR COVER
10
ELBOW 90 DEGREE
11
COMPRESSION NUT M16-1.5
12
AIR TUBE
13
MUFFLER
14
TRIP SHOE GUIDE
15
SPRING SEAT
16
COMPRESSION SPRING
17
SPRING SHELL
18
GASKET 22MM
19
VALVE SEAL 12MM
20
CONNECTOR
21
CONNECTING TUBE
22
PISTON SHELL
23
VALVE SEAT
24
SUCTION TUBE
25
Now: PN01M
HEX NUT M6-1
Price
N/A
26
Now: PW03M
FLAT WASHER 6MM
Price
N/A
27
Now: PW01M
FLAT WASHER 8MM
Price
N/A
28
VALVE RING
29
VALVE
30
SEAL
31
CONNECTING ROD
32
VALVE CONNECTOR
33
STEEL BALL 6MM
Price
N/A
34
COMPRESSION SPRING
35
SPRING SEAT
36
PISTON
37
O-RING 14 X 2.65
38
STEEL BALL 6MM
Price
N/A
39
COMPRESSION SPRING
40
CONNECTING ROD
41
ADJUSTMENT NUT
42
CONNECTING ROD
43
PISTON ROD
44
SLEEVE
45
PISTON
46
FENDER WASHER 10MM
Price
N/A
47
Now: PN14M
HEX NUT M10-1
Price
N/A
48
LID
49
DRUM
50
WHEEL
51
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
52
BASE
53
N/S GRIZZLY GREEN G1023S
Price
N/A
54
MACHINE ID LABEL
55
GRIZZLY.COM LABEL 8",BEIGE
Price
N/A
56
EXPLOSION HAZARD LABEL
60
GREASE GUN
61
HIGH PRESSURE HOSE 7500-PSI
62
HANDLE
63
GREASE OUTLET M14
64
***USE H7274***
Item is no longer available
Price
N/A
