Item: G0517 | Model: G0517

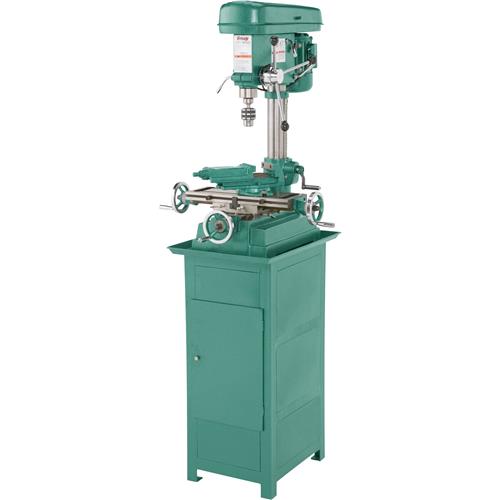

Grizzly G0517 - 6" x 16" Mill/Drill with Stand

Please note that this item is discontinued and no longer available for sale.

Don't let the price fool you! Not only do you get a Mill/Drill with 5/8" capacity, double lock column, 12 spindle speeds and a 9-1/4" x 5-3/4" table travel, but you also get a stand and milling vise too! Check out all the details below.

Features:

5/8" drill chuck
Machine vise
MT #2/#3 and MT #1/#2 adapters
Adjustable gibs on table
Head rotates a full 360º
Spindle draw bar thread size: M12-1.75

Specifications:

Spindle taper: MT #3
Spindle travel: 3-1/8"
Swing: 14-1/2"
Max. distance spindle to table: 14"
Max. distance spindle to column: 7-1/4"
Column size: 2-53/64"
T-Slots: 2 @ 3-3/8" centers, 3/8" Studs
Table size: 6-1/2" x 16-1/2"
Longitudinal table travel: 9-1/4"
Cross-slide travel: 5-3/4"
Drilling capacity: 5/8"
Number of speeds: 12
Range of speeds: 300, 400, 540, 720, 900, 1040, 1500, 1740, 2100, 2260, 3100 & 3840 RPM
Motor size: 1/2 HP
Approximate shipping weight: 289 lbs.

Overview Specifications & Comparisons

Specification Sheet Manual Parts List Buy Parts

Overview

5/8" drill chuck
Machine vise
MT #2/#3 and MT #1/#2 adapters
Adjustable gibs on table
Head rotates a full 360º
Spindle draw bar thread size: M12-1.75

Specifications:

Spindle taper: MT #3
Spindle travel: 3-1/8"
Swing: 14-1/2"
Max. distance spindle to table: 14"
Max. distance spindle to column: 7-1/4"
Column size: 2-53/64"
T-Slots: 2 @ 3-3/8" centers, 3/8" Studs
Table size: 6-1/2" x 16-1/2"
Longitudinal table travel: 9-1/4"
Cross-slide travel: 5-3/4"
Drilling capacity: 5/8"
Number of speeds: 12
Range of speeds: 300, 400, 540, 720, 900, 1040, 1500, 1740, 2100, 2260, 3100 & 3840 RPM
Motor size: 1/2 HP
Approximate shipping weight: 289 lbs.
