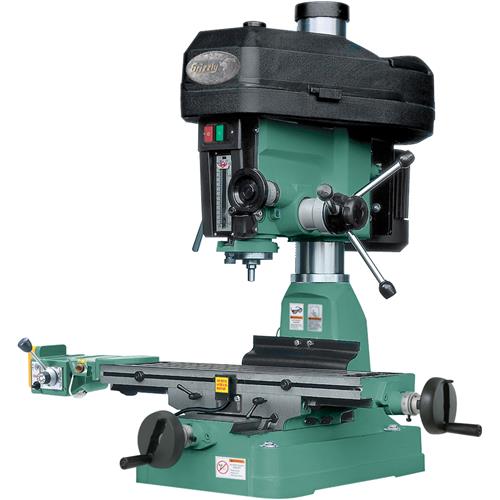

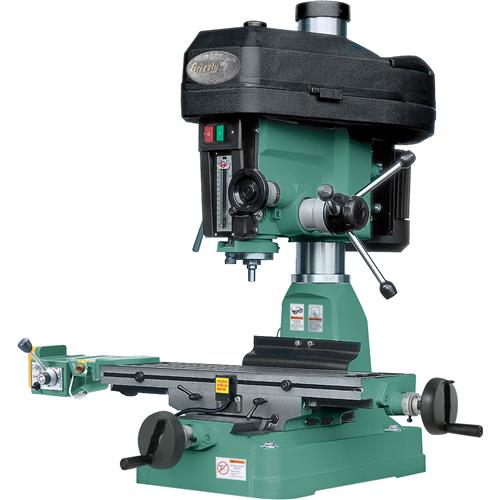

G1007 Mill/Drill w/ Variable Speed Power Feed
FREE SHIPPING !
Description
This Mill/Drill has long been accepted in the market as a machine that can handle the work of machines costing thousands of dollars more. We go one step further and offer you this improved model with a super-large table and a variable speed power feed. The power feed is reversible with rapid traverse for fast return and has an automatic shut-off micro-switch. The table can also be used manually. It comes standard with 3" carbide fly cutter, angle vise and 1/2" drill chuck.
Features:
- Exclusive fine down-feed is graduated in .001" and is engaged by clutch-type mechanism
- Heavy-duty, 12-speed tapered roller bearing spindle
- Powerful 2 HP single phase, 110/220V motor
- Push Button Switch with Thermal Overload Protection
- Top quality workmanship throughout
Table Slide Range: 6-3/4" x 21-1/2"! Wow!
Specifications:
- Spindle taper: R-8
- Spindle travel: 5"
- Swing: 16"
- Max. distance spindle nose to table: 18"
- Column size: 4-1/2"
- Collars calibrated: .001"
- T-slots: Use 1/2" Studs
- Table size: 9-1/2" x 32"
- Max. table travel: 24"
- Cross-slide travel: 6-1/8"
- Drilling capacity: 1-1/4"
- Number of speeds: 12
- Range of speeds: 150, 225, 255, 350, 400, 500, 850, 1200, 1500, 1600, 2300, 3000 RPM
- Motor size: 2 HP
- Approx. shipping weight: 670 lbs.
