Item: G1030 | Model: G1030
Image for G1030

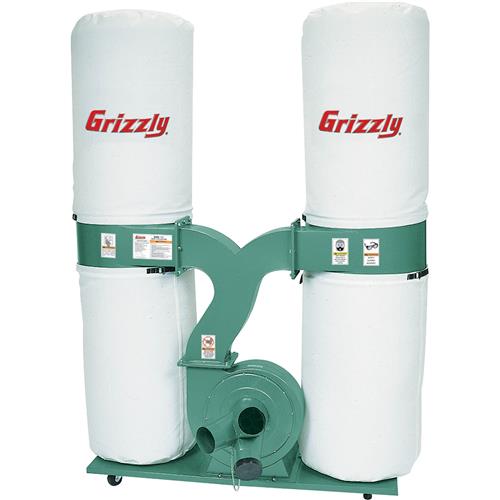

Grizzly G1030 - 3 HP Dust Collector

  • Motor size: 3 H.P., 220V, single phase, 3450 RPM
  • Motor Amp Draw: 15 Amps (220V only)
  • Has a 6" inlet with a removable "Y" fitting with three 4" openings
  • Portable Base Size: 21-1/2" x 49-1/2"
  • Bag Capacity: 10.8 cubic feet
  • Height (with bags inflated): 78"
  • Bag Size (diameter x depth): 19" x 33"(4)
  • Powder coated paint
  • Impeller Type/Balanced Steel: 12" Radial Fin
  • Air Suction Capacity: 2300 CFM
  • Static Pressure: 16.7"
  • Standard Bag Filtration: 30 Micron
  • Approx. Shipping Weight: 170 lbs.

Free 4" x 10' Hose!

View More Details

Accessories

Image for G4700 220V Dust Collection Remote Item# G4700 $128.95 Add Image for G1027 Upper Bag for Models G1028-29, G1030 Item# G1027 $20.95 Add Image for T28429 30 Amp 250V NEMA L6-30 Single-Phase Twist Lock Plug Item# T28429 $24.95 Add Image for T24733 62" Bag Clamp Item# T24733 $22.95 Add Image for W1050 Dust Collection Basics - Book Item# W1050 $6.50 Add
Shop All Accessories
Overview Specifications & Comparisons Specification Sheet Manual Parts List Buy Parts
Overview
  • Motor size: 3 H.P., 220V, single phase, 3450 RPM
  • Motor Amp Draw: 15 Amps (220V only)
  • Has a 6" inlet with a removable "Y" fitting with three 4" openings
  • Portable Base Size: 21-1/2" x 49-1/2"
  • Bag Capacity: 10.8 cubic feet
  • Height (with bags inflated): 78"
  • Bag Size (diameter x depth): 19" x 33"(4)
  • Powder coated paint
  • Impeller Type/Balanced Steel: 12" Radial Fin
  • Air Suction Capacity: 2300 CFM
  • Static Pressure: 16.7"
  • Standard Bag Filtration: 30 Micron
  • Approx. Shipping Weight: 170 lbs.

Free 4" x 10' Hose!
